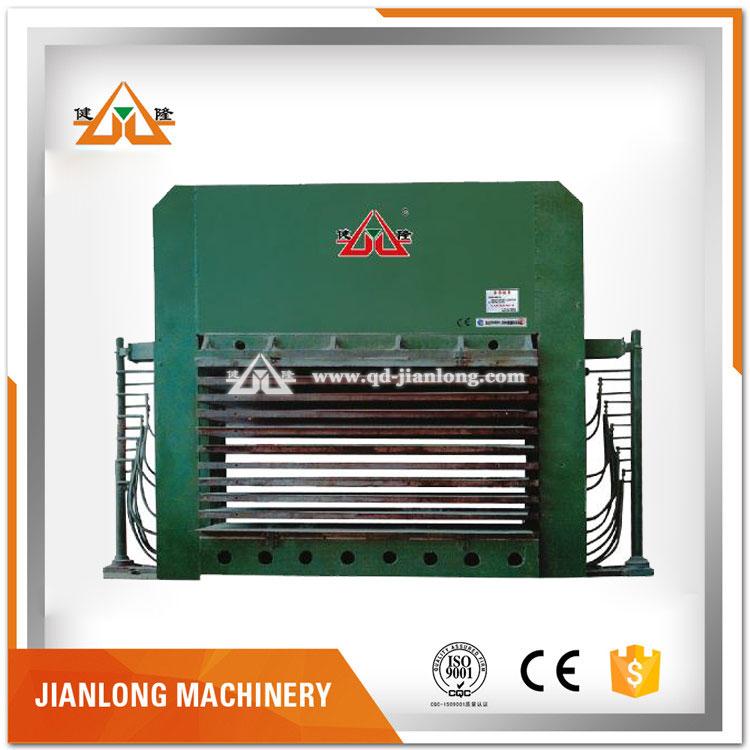

Hot Press for Plywood and Decoration Board Technical specifications
| Mode | Size (foot) | Dimension of Hot Platens(mm) | Nominal Pressure (MN) | Max Service Opening (mm) | Number of Daylights |
| BY214×8/50(5)H | 4×8 | 1400×2600 | 5.0 | 80 | 5 |
| BY214×8/50(7)H | 4×8 | 1400×2600 | 5.0 | 80 | 7 |
| BY214×8/50(10)H | 4×8 | 1400×2600 | 5.0 | 80 | 10 |
| BY214×8/50(7-10)H | 4×8 | 1400×2600 | 6.3 | 80 | 7-10 |
Hot Press for hollow door Technical specifications
| Mode | Size (foot) | Dimension of Hot Platens(mm) | Nominal Pressure (MN) | Max Service Opening (mm) | Number of Daylights |
| BY213×7/31.5(10)H | 3×7 | 1100×2250 | 3.15 | 80 | 10 |
| BY213×7/31.5(7)H | 3×7 | 1100×2250 | 3.15 | 80 | 7 |
| BY213×7/31.5(7-10)H | 3×7 | 1100×2250 | 5.0 | 80 | 7-10 |
| Model | BY214x8/50（1-15）H | BY213x7/60(1-15)H | BY216x9/70（ 1-15）H | BY214x8/120（1-15）H |
| Board size | 4x8 | 3x7 | 6x9 | 4x8 |
| Dimension of hot platens | 1300x2500mm | 1100x2250mm | 2000x3000 | 1300x2500mm |
| Nominal pressure | 5000 KN | 6000 KN | 7000 KN | 12000 KN |
| Service opening | 80-200mm | 80-200mm | 80-200mm | 80-200mm |
| Layers | 1-15 | 1-15 | 1-15 | 1-15 |
