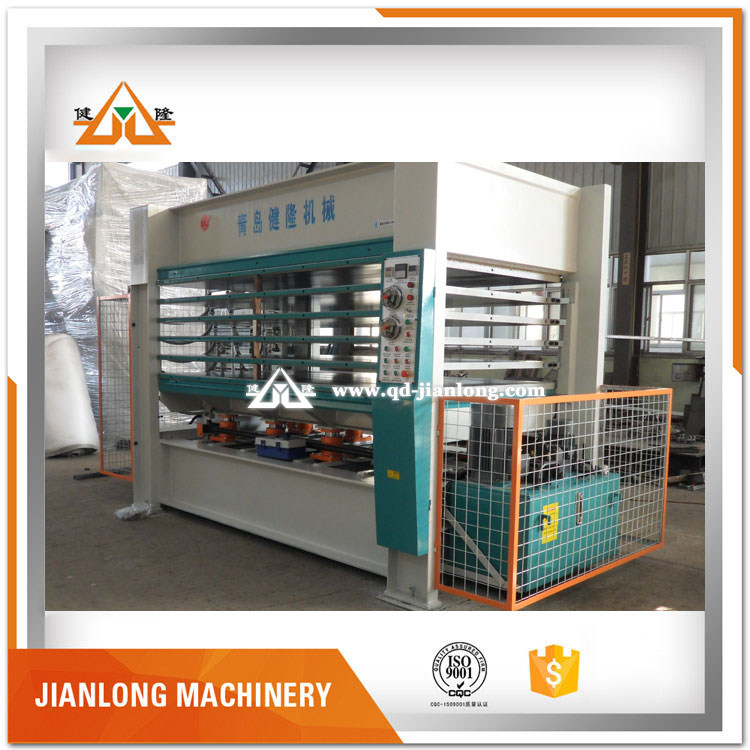

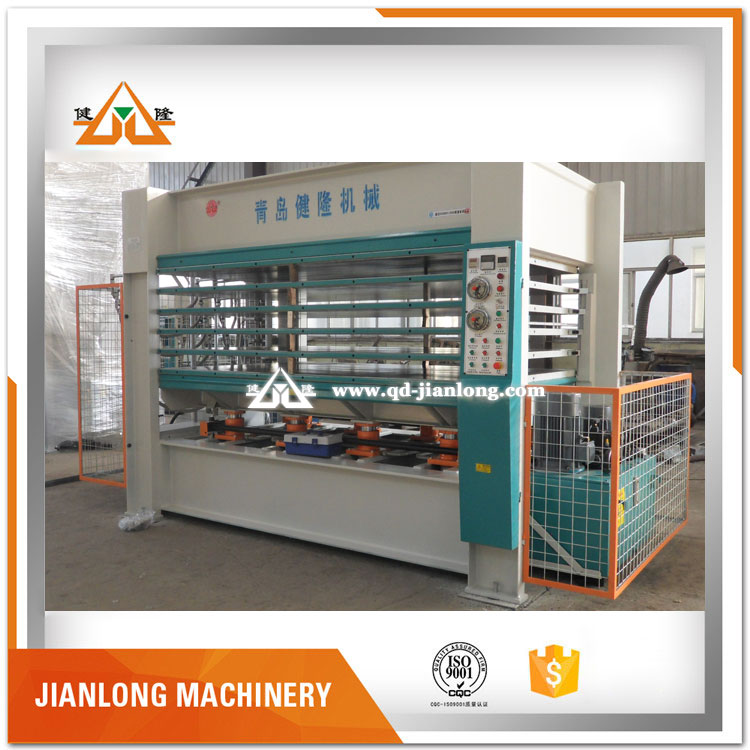

Model |
BY214x8/16(4)H |
BY214x8/16(5)H |
BY214x8/16(6)H |
Total pressure |
160ton |
160ton |
160ton |
Feeding direction |
Transversal |
Transversal |
Transversal |
Dimension of hot platen |
2500x1300x42mm |
2500x1300x42mm |
2500x1300x42mm |
Number of layers |
4 |
5 |
6 |
Number of platens |
5 |
6 |
7 |
Opening |
400mm |
500mm |
600mm |
Diameter & stroke of Oil cylinder |
Ф100mmx400mm |
Ф100mmx500mm |
Ф100mmx600mm |
Number of cylinders |
8 |
8 |
8 |
Heating medium |
Steam or thermal oil |
Steam or thermal oil |
Steam or thermal oil |
Frame structure |
Welded |
Welded |
Welded |
Working pressure of high pump |
25.2Mpa |
25.2Mpa |
25.5Mpa |
Total power |
7Kw |
7Kw |
7Kw |
Thermal Oil Furnace |
55.5Kw |
55.5Kw |
74.2Kw |
Net Weight (Approx) |
10100Kg |
11200Kg |
12200Kg |
Max working temperature |
120℃ |
120℃ |
120℃ |
